The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

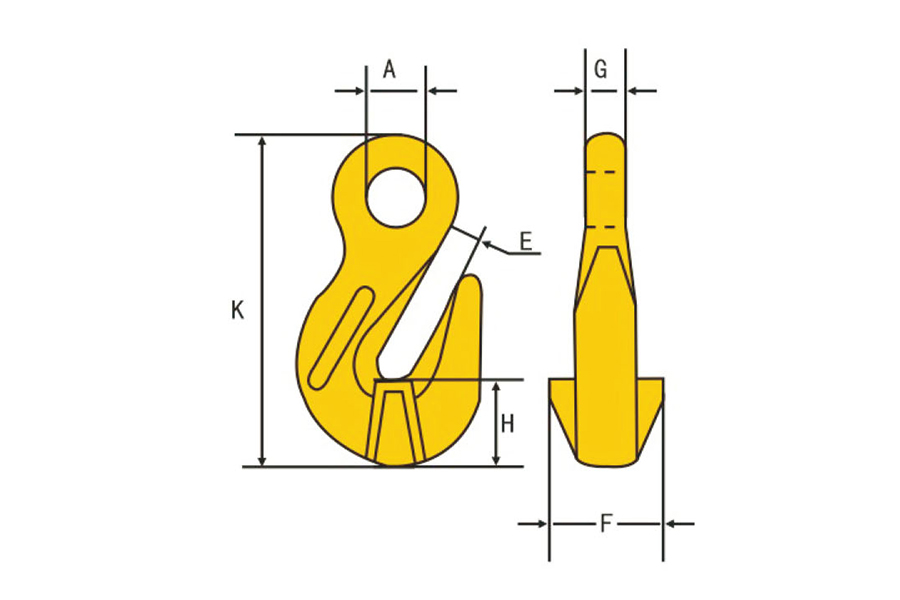

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | |||||
| K | G | F | A | H | E | ||||
| 80FMG006 | 6-8 | 0.135 | 1.2 | 75.2 | 8 | 22 | 13.5 | 16 | 8 |
| 80FMG087 | 7/8-8 | 0.25 | 2 | 88.5 | 9 | 35 | 17 | 18.5 | 10.8 |
| 80FMG010 | 10-8 | 0.7 | 3.2 | 121.5 | 14.5 | 47 | 20 | 29 | 13 |
| 80FMG013 | 13-8 | 1.325 | 5.3 | 158 | 17 | 58 | 26 | 42.8 | 16.5 |
| 80FMG016 | 16-8 | 2.3 | 8 | 169 | 22 | 71 | 30 | 45.7 | 19.2 |
| 80FMG020 | 20-8 | 4.6 | 12.5 | 219 | 23 | 98 | 37 | 56 | 24 |
| 80FMG022 | 22-8 | 8.2 | 15 | 259 | 26 | 110 | 44 | 68 | 28 |
| 80FMG026 | 26-8 | 9.8 | 21.2 | 298 | 30 | 124 | 48 | 77 | 30 |
| 80FMG032 | 32-8 | 19.4 | 31.5 | 361 | 36 | 138 | 57 | 95 | 38 |
