The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

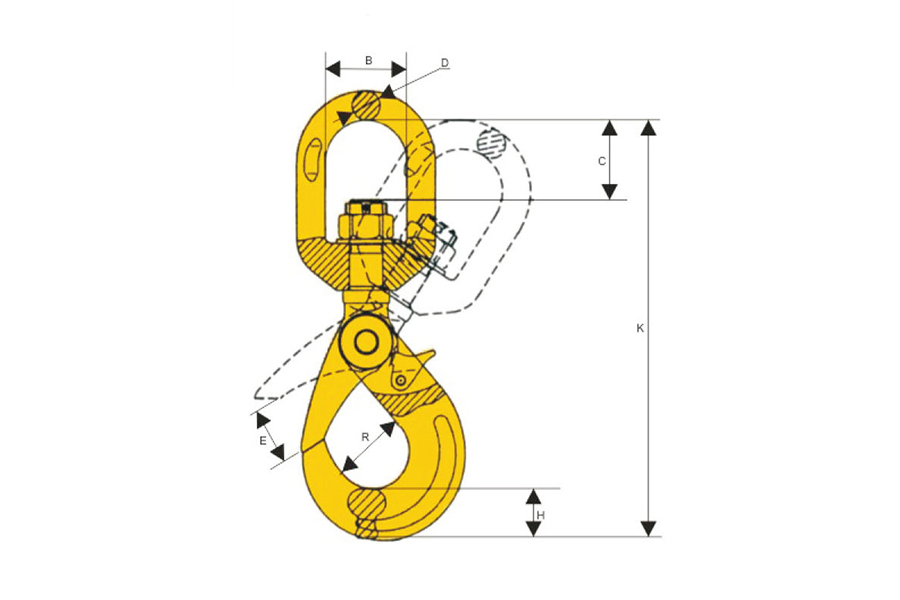

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | ||||||
| K | B | D | C | R | H | E | ||||
| 80FMR006 | 6-8 | 0.7 | 1.2 | 170 | 32 | 12 | 23 | 34 | 20.5 | 29 |
| 80FMR087 | 7/8-8 | 1.21 | 2 | 210 | 34.5 | 12.5 | 29 | 46 | 25 | 34 |
| 80FMR010 | 10-8 | 2 | 3.2 | 247 | 42 | 15.5 | 37 | 56 | 31 | 44 |
| 80FMR013 | 13-8 | 3.5 | 5.3 | 302 | 49 | 17 | 41 | 69 | 42 | 52 |
| 80FMR016 | 16-8 | 7.1 | 8 | 383 | 61 | 22 | 54 | 86 | 53 | 60 |
| 80FMR020 | 20-8 | 12 | 12.5 | 418 | 72 | 24 | 61 | 88 | 58 | 83 |
| 80FMR022 | 22-8 | 16 | 15 | 527 | 95 | 33 | 95 | 98 | 64 | 88 |
| 80FMR026 | 26-8 | 21.5 | 21.2 | 610 | 122 | 42 | 115 | 110 | 75 | 95.5 |
| 80FMR032 | 32-8 | 79 | 31.5 | 777 | 140 | 52 | 126 | 166 | 97 | 150 |
