Ningbo Haishu Frima Industry & Trade Co.,Ltd
Forged Alloy Steel -Quenched and Tem pered
Individually Proof Tested at 2.5 times Working Load Limit with certification.
Ultimate Load is 4 times the Working Load Limit
100% magnaflux crack detection
Suitable for EN818-2 G80 chain
Surface finish: Powder Plastified
Colour code: Red (RAL3020)/ Yellow (RAL1003). Other colour is available as perrequest.

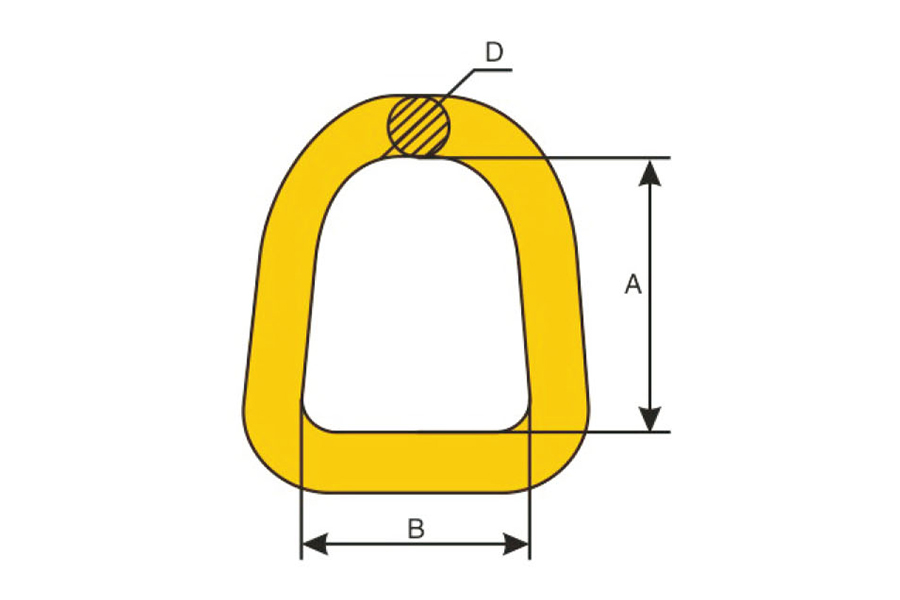

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | ||
| A | B | C | ||||
| 80FM14025 | 14-8 | 0.3 | 2.5 | 65 | 55 | 14 |
| 80FM1704 | 17-8 | 0.48 | 4.0 | 72 | 64 | 17 |
| 80FM19065 | 19-8 | 0.71 | 6.5 | 80 | 72 | 19 |
| 80FM2208 | 22-8 | 1.0 | 8.0 | 90 | 76 | 22 |
