Ningbo Haishu Frima Industry & Trade Co.,Ltd
The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

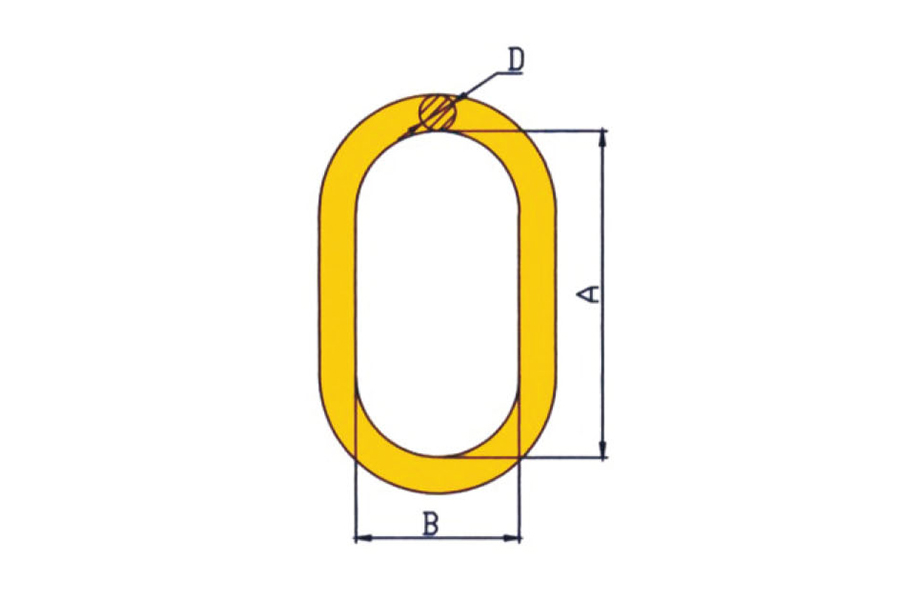

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | ||
| A | B | D | ||||
| 80FMR2401 | 1/2" | 0.45 | 2 | 127 | 63.5 | 14 |
| 80FMR2402 | 5/8" | 0.7 | 3 | 152 | 76 | 16 |
| 80FMR2403 | 3/4" | 1.04 | 4.7 | 140 | 70 | 20 |
| 80FMR2404 | 7/8" | 1.47 | 6.4 | 160 | 90 | 22 |
| 80FMR2405 | 7/8" | 1.57 | 8 | 178 | 89 | 22 |
| 80FMR2406 | 1" | 2.1 | 11 | 178 | 89 | 25 |
| 80FMR2407 | 1-1/4" | 4.2 | 16 | 220 | 110 | 32 |
| 80FMR2408 | 1-1/2" | 7.25 | 21.7 | 270 | 140 | 38 |
| 80FMR2409 | 1-3/4" | 11.55 | 28.4 | 305 | 152 | 45 |
| 80FMR2410 | 2" | 16.56 | 35 | 355 | 178 | 50 |
| 80FMR2411 | 2-1/4" | 24.5 | 45 | 350 | 190 | 50 |
| 80FMR2412 | 2-1/2" | 32.1 | 50 | 430 | 220 | 63 |
| 80FMR2413 | 2-3/4" | 42.5 | 60 | 450 | 250 | 70 |
| 80FMR2414 | 3" | 50.12 | 70 | 450 | 270 | 75 |
| 80FMR2415 | 3-1/4" | 59.11 | 80 | 480 | 250 | 80 |
| 80FMR2416 | 3-1/2" | 79.41 | 90 | 500 | 270 | 90 |
| 80FMR2417 | 4" | 115 | 100 | 600 | 300 | 100 |
