The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

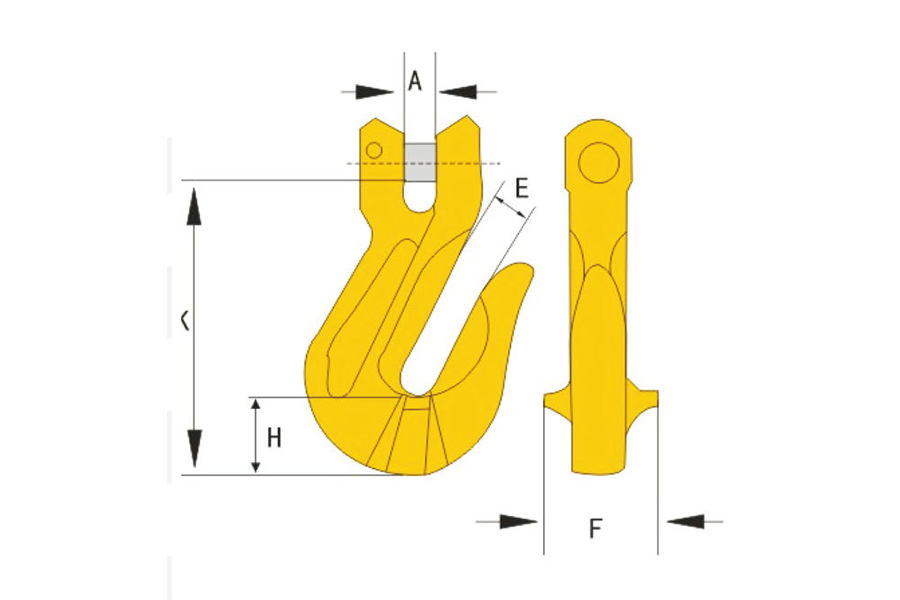

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | ||||
| K | F | A | H | E | ||||
| 80FMW006 | 6-8 | 0.12 | 1.2 | 75 | 26.7 | 8 | 17.7 | 8.3 |
| 80FMW087 | 7/8-8 | 0.24 | 2 | 89 | 33.5 | 9.5 | 18.5 | 11 |
| 80FMW010 | 10-8 | 0.68 | 3.2 | 126 | 46 | 12.5 | 29 | 13 |
| 80FMW013 | 13-8 | 1.3 | 5.3 | 163.5 | 57.5 | 15 | 42.5 | 16.5 |
| 80FMW016 | 16-8 | 2.28 | 8 | 183.5 | 70 | 18.5 | 45.7 | 19 |
| 80FMW020 | 20-8 | 4.25 | 12.5 | 219 | 84 | 23 | 56 | 24 |
| 80FMW022 | 22-8 | 6.3 | 15 | 254 | 90 | 27 | 68.5 | 27 |
| 80FMW026 | 26-8 | 14.5 | 21.2 | 309 | 102 | 30 | 77 | 30 |
