The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

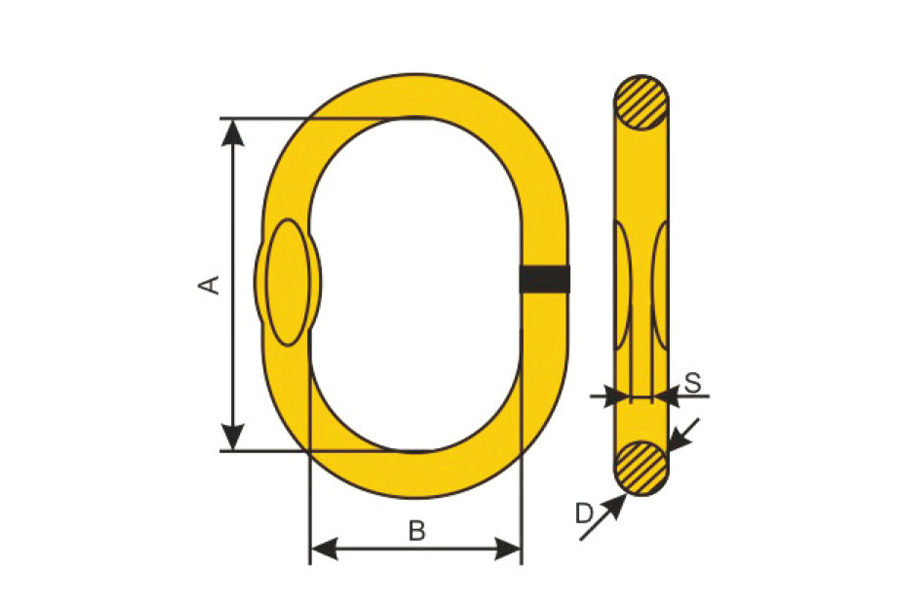

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | ||
| A | B | D | ||||
| 80FMR076 | 7 6-8 | 0.41 | 1.6 | 110 | 60 | 14 |
| 80FMR087 | 8 7-8 | 0.54 | 2.12 | 110 | 60 | 16 |
| 80FMR1008 | 10 8-8 | 0.83 | 3.15 | 135 | 75 | 18 |
| 80FMR1310 | 13 10-8 | 1.5 | 5.3 | 160 | 90 | 22 |
| 80FMR1613 | 16 13-8 | 2.32 | 8 | 180 | 100 | 26 |
| 80FMR1816 | 18 16-8 | 3.96 | 11.2 | 200 | 110 | 32 |
| 80FMR2018 | 20 18-8 | 6.34 | 14 | 260 | 140 | 36 |
| 80FMR2220 | 22 20-8 | 8.97 | 17 | 300 | 160 | 40 |
| 80FMR2622 | 26 22-8 | 12.83 | 21.2 | 340 | 180 | 45 |
| 80FMR3226 | 32 26-8 | 16.57 | 31.5 | 350 | 190 | 50 |
| 80FMR3632 | 36 32-8 | 23.3 | 45 | 400 | 200 | 56 |
| 80FMR4036 | 40 36-8 | 32.1 | 56 | 430 | 220 | 63 |
