The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

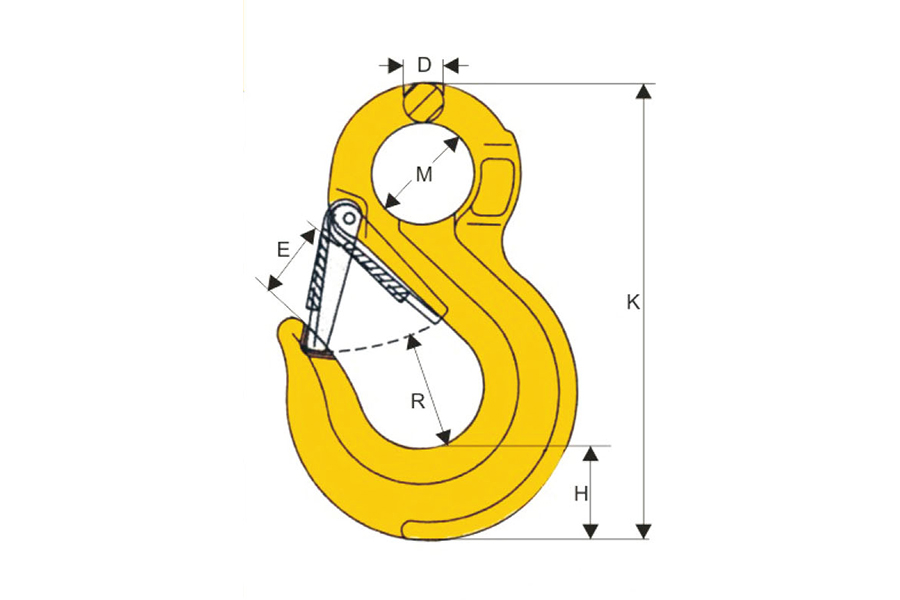

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | |||||
| K | M | D | R | H | E | ||||
| 80FMEH006 | 6-8 | 0.31 | 1.2 | 108 | 20 | 9 | 21 | 19 | 24 |
| 80FMEH087 | 7/8-8 | 0.45 | 2 | 133 | 25 | 11 | 26 | 24 | 30 |
| 80FMEH010 | 10-8 | 1.09 | 3.2 | 167 | 38 | 15 | 39 | 32 | 34 |
| 80FMEH013 | 13-8 | 2.07 | 5.3 | 213 | 43 | 19 | 54 | 42 | 39 |
| 80FMEH016 | 16-8 | 3.17 | 8 | 255 | 50 | 23 | 64 | 48 | 46 |
| 80FMEH020 | 20-8 | 6.45 | 12.5 | 305 | 62 | 24 | 80 | 58 | 60 |
| 80FMEH022 | 22-8 | 8.5 | 15 | 348 | 62 | 32 | 80 | 64 | 71 |
| 80FMEH026 | 26-8 | 13 | 21.2 | 394 | 64 | 35 | 82 | 75 | 81 |
| 80FMEH032 | 32-8 | 17 | 31.5 | 480 | 88 | 37 | 112 | 97 | 102 |
