Forged alloy steel hardened and Tem-treated.
Individual proof tested at 2.5 times the working load limit with certification.
Extreme loads are 4 times the working load limit.
100% magnetic flaw detection.
Suitable for EN818-2 G80 chains.
Surface treatment: Powder plasticized.
Color code: red (RAL3020) / yellow (RAL1003). Other colours available.

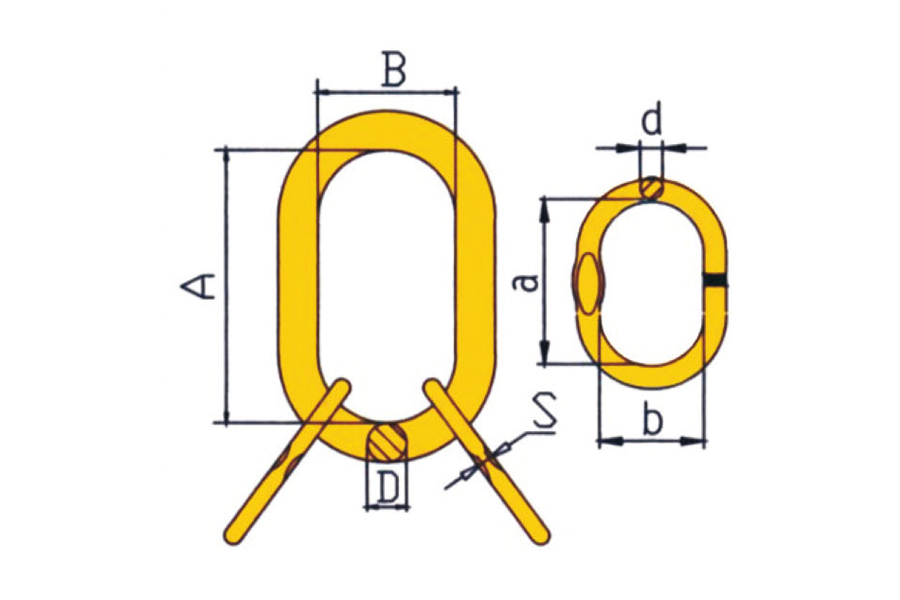

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | |||||
| A | B | D | a | b | d | ||||
| 80FMR001 | 3/4" | 1.55 | 4.7 | 140 | 70 | 20 | 85 | 40 | 14 |
| 80FMR002 | 7/8" | 2.07 | 6.4 | 160 | 95 | 22 | 70 | 34 | 16 |
| 80FMR003 | 7/8" | 3.29 | 88 | 178 | 89 | 25 | 100 | 60 | 18 |
| 80FMR004 | 1" | 6.1 | 11 | 200 | 110 | 32 | 115 | 50 | 22 |
| 80FMR005 | 1-1/4" | 9.98 | 16 | 260 | 140 | 36 | 140 | 65 | 25 |
| 80FMR006 | 1-1/2" | 12.91 | 21.7 | 270 | 140 | 38 | 180 | 100 | 30 |
| 80FMR007 | 1-3/4" | 21.25 | 28.4 | 305 | 152 | 45 | 180 | 100 | 32 |
| 80FMR008 | 2" | 27.2 | 35 | 355 | 178 | 50 | 180 | 100 | 38 |
| 80FMR009 | 2-1/4" | 36 | 45 | 400 | 200 | 56 | 200 | 110 | 40 |
| 80FMR010 | 2-1/2" | 46.7 | 50 | 430 | 220 | 63 | 180 | 100 | 45 |
| 80FMR011 | 2-3/4" | 67 | 55 | 460 | 250 | 72 | 200 | 110 | 50 |
| 80FMR012 | 3" | 65 | 70 | 406 | 205 | 63 | 355 | 178 | 50 |
| 80FMR013 | 3-1/4" | 100 | 80 | 450 | 250 | 70 | 430 | 220 | 60 |
