The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

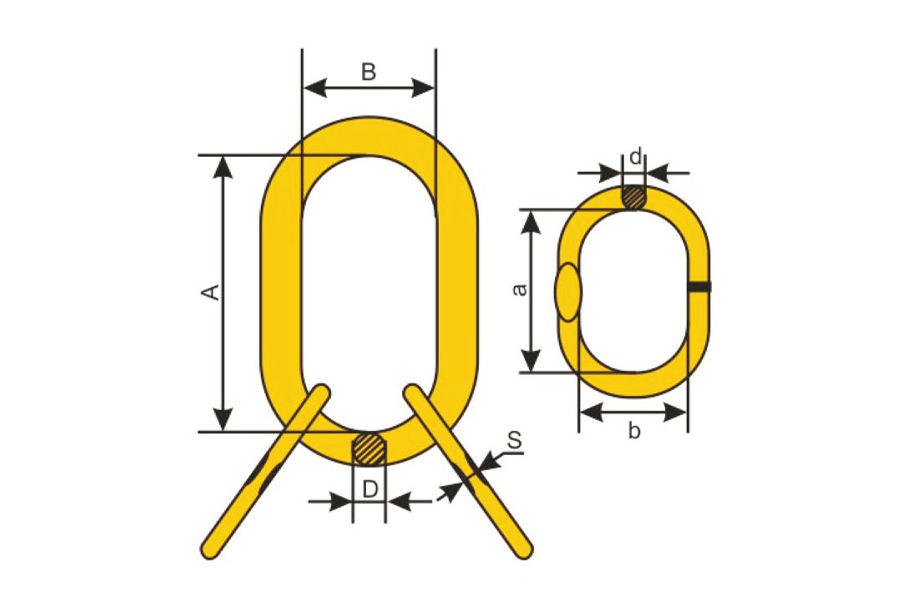

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | |||||
| A | B | D | a | b | d | ||||
| 80FMR006 | 6-8 | 1.27 | 2.36 | 135 | 75 | 18 | 54 | 25 | 14 |
| 80FMR007 | 7-8 | 1.33 | 3.15 | 135 | 75 | 18 | 60 | 38 | 14 |
| 80FMR008 | 8-8 | 2.19 | 4.25 | 160 | 90 | 22 | 70 | 34 | 16 |
| 80FMR010 | 10-8 | 3.81 | 6.7 | 180 | 100 | 25 | 85 | 40 | 18 |
| 80FMR013 | 13-8 | 6.08 | 11.2 | 200 | 110 | 32 | 115 | 50 | 22 |
| 80FMR016 | 16-8 | 11.38 | 17 | 260 | 140 | 36 | 140 | 65 | 25 |
| 80FMR018 | 18-8 | 20.09 | 21.2 | 340 | 180 | 45 | 180 | 110 | 32 |
| 80FMR020 | 20-8 | 23.83 | 26.5 | 350 | 190 | 50 | 180 | 110 | 32 |
| 80FMR022 | 22-8 | 27.14 | 31.8 | 355 | 178 | 50 | 180 | 100 | 38 |
| 80FMR026 | 26-8 | 35.14 | 45 | 400 | 200 | 56 | 200 | 115 | 40 |
| 80FMR032 | 32-8 | 47.48 | 50 | 430 | 220 | 63 | 180 | 100 | 45 |
