The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

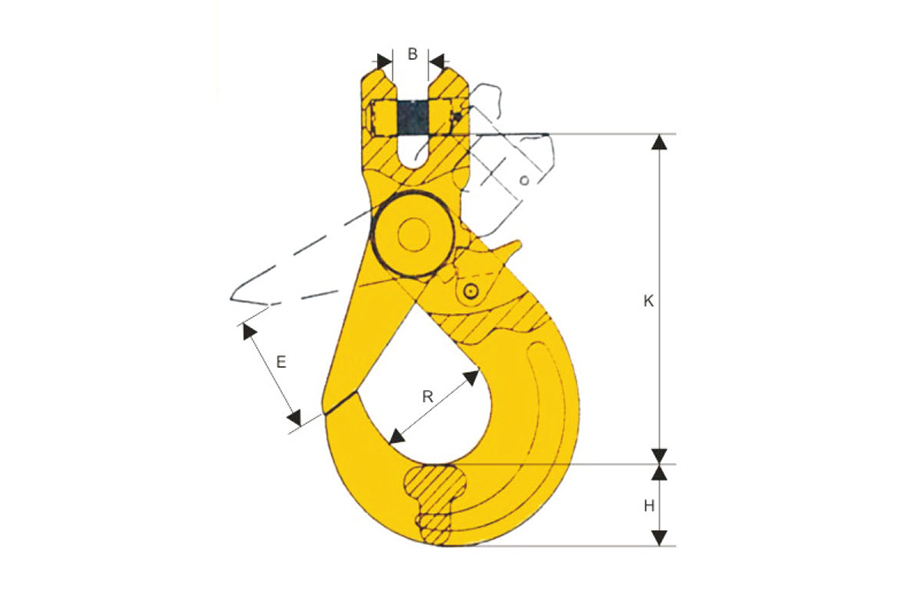

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | ||||
| K | B | R | H | E | ||||
| 80FMEH006 | 6-8 | 0.5 | 1.2 | 99 | 8.5 | 34 | 20.5 | 29 |
| 80FMEH087 | 7/8-8 | 0.86 | 2 | 123 | 9.5 | 46 | 25 | 34 |
| 80FMEH010 | 10-8 | 1.41 | 3.2 | 146 | 12 | 56 | 31 | 44 |
| 80FMEH013 | 13-8 | 2.73 | 5.3 | 185 | 15 | 69 | 42 | 52 |
| 80FMEH016 | 16-8 | 5.6 | 8 | 222 | 18 | 86 | 53 | 60 |
| 80FMEH020 | 20-8 | 6.5 | 12.5 | 240 | 26 | 88 | 58 | 83 |
| 80FMEH022 | 22-8 | 16 | 15 | 276.5 | 28 | 98 | 64 | 88 |
| 80FMEH026 | 26-8 | 18.5 | 21.2 | 310.5 | 30 | 110 | 75 | 95.5 |
| 80FMEH032 | 32-8 | 49.1 | 31.5 | 400.5 | 36 | 166 | 97 | 160 |
