The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

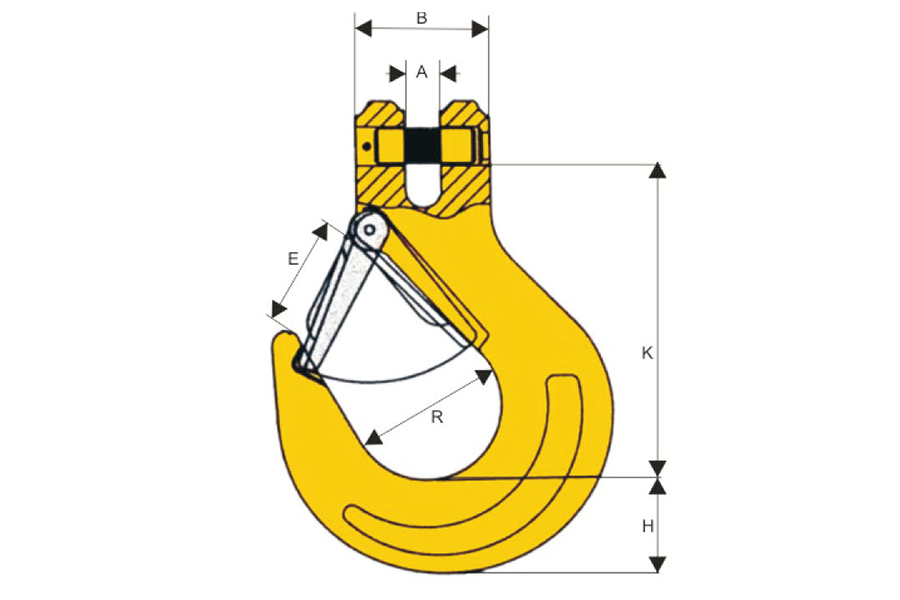

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | |||||
| K | B | A | R | H | E | ||||
| 80FMCH006 | 6-8 | 0.41 | 1.2 | 75 | 32 | 8 | 35 | 23 | 26 |
| 80FMCH087 | 7/8-8 | 0.65 | 2 | 85 | 37 | 9.5 | 37 | 32.5 | 29 |
| 80FMCH010 | 10-8 | 1.05 | 3.2 | 104 | 49 | 13 | 46 | 35 | 39 |
| 80FMCH013 | 13-8 | 1.67 | 5.3 | 128 | 56.5 | 16.5 | 56 | 42.5 | 47 |
| 80FMCH016 | 16-8 | 3.71 | 8 | 150 | 70.5 | 21.5 | 60 | 54 | 55 |
| 80FMCH020 | 20-8 | 6.05 | 12.5 | 180 | 77 | 24 | 79 | 58 | 61 |
| 80FMCH022 | 22-8 | 10.5 | 15 | 213 | 91 | 27 | 101 | 62 | 72 |
| 80FMCH026 | 26-8 | 14.5 | 21.2 | 250 | 117 | 30 | 115 | 75 | 85 |
| 80FMCH032 | 32-8 | 27 | 31.5 | 317 | 150 | 35 | 140 | 88 | 106 |
