The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

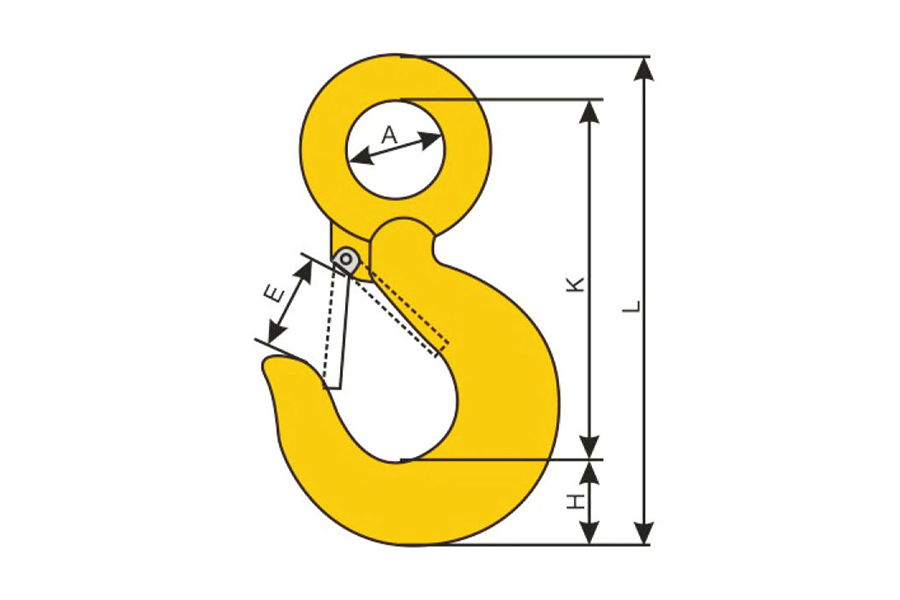

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | |||||
| K | L | A | H | E | |||||
| 80FME006 | 6-8 | 0.28 | 1.2 | 80 | 110 | 19 | 19 | 22 | |
| 80FME087 | 7/8-8 | 0.65 | 2 | 103 | 140.5 | 28 | 25 | 25 | |
| 80FME010 | 10-8 | 0.94 | 3.2 | 118 | 162 | 31 | 28 | 27.5 | |
| 80FME013 | 13-8 | 1.95 | 5.3 | 145 | 201 | 39 | 35 | 33 | |
| 80FME016 | 16-8 | 3.77 | 8 | 180 | 256 | 51 | 45 | 40 | |
| 80FME020 | 20-8 | 6.8 | 12.5 | 230 | 317 | 62 | 57 | 51 | |
| 80FME022 | 22-8 | 9.8 | 15 | 260 | 360 | 73 | 70 | 57 | |
| 80FME026 | 26-8 | 16.25 | 21.2 | 318 | 434 | 89 | 76 | 75 | |
| 80FME032 | 32-8 | 27.2 | 31.5 | 360 | 495.5 | 90 | 91 | 98 | |
