Ningbo Haishu Frima Industry & Trade Co.,Ltd
The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

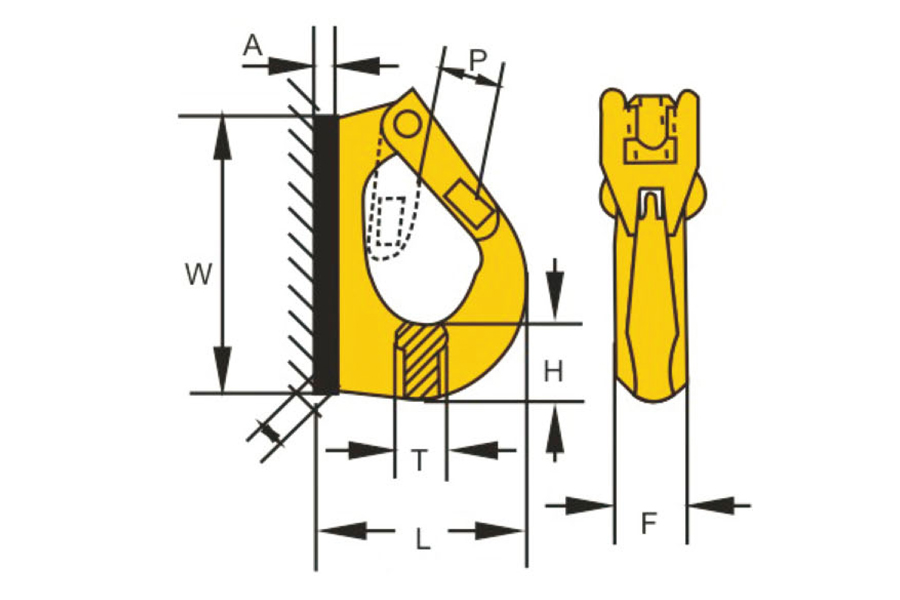

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | ||||||
| A | W | P | T | L | H | F | ||||
| 80FMH002 | 2T | 0.84 | 2 | 5 | 80 | 25 | 20 | 94 | 24 | 34 |
| 80FMH003 | 3T | 1.18 | 3 | 6 | 115 | 30 | 24 | 105 | 30 | 36 |
| 80FMH005 | 5T | 2.50 | 5 | 10 | 155 | 34 | 28 | 132 | 43 | 44 |
| 80FMH008 | 8T | 3.26 | 8 | 12 | 160 | 34 | 38 | 135 | 51 | 51 |
| 80FMH010 | 10T | 5.17 | 10 | 15 | 200 | 50 | 39 | 167 | 55 | 53 |
