The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

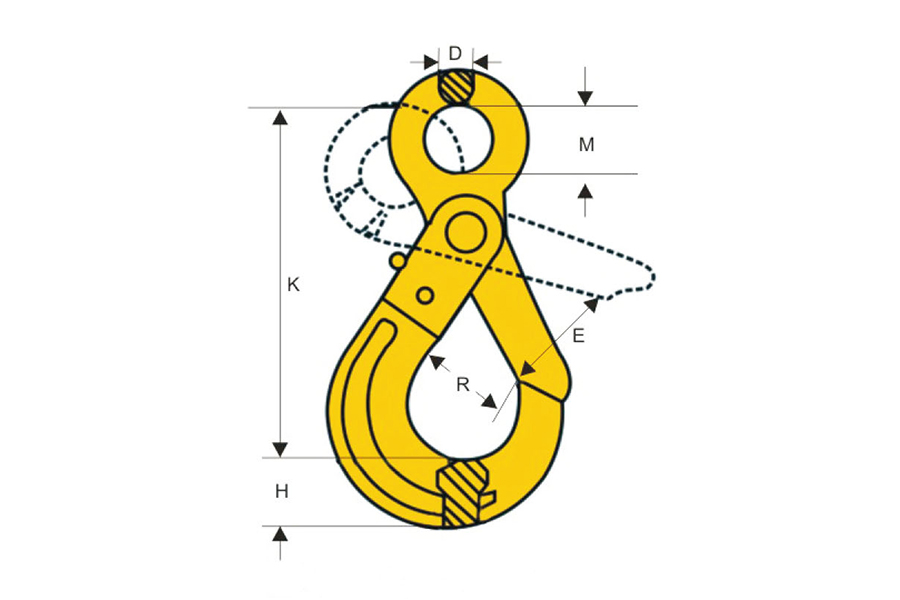

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | |||||
| M | K | D | R | H | E | ||||
| 80FMES006 | 6-8 | 0.46 | 1.2 | 22 | 110.5 | 10 | 34 | 20.5 | 28 |
| 80FMES087 | 7/8-8 | 0.79 | 2 | 25 | 136 | 12 | 46 | 25 | 34 |
| 80FMES010 | 10-8 | 1.52 | 3.2 | 32 | 171 | 15 | 56 | 31 | 44 |
| 80FMES013 | 13-8 | 2.87 | 5.3 | 40.5 | 208.5 | 19.5 | 69 | 42 | 52 |
| 80FMES016 | 16-8 | 5.69 | 8 | 56 | 257.5 | 22 | 86 | 53 | 60 |
| 80FMES020 | 20-8 | 7.15 | 12.5 | 64.5 | 275 | 27 | 88 | 58 | 81 |
| 80FMES022 | 22-8 | 13.4 | 15 | 70 | 320 | 30 | 98 | 64 | 82 |
| 80FMES026 | 26-8 | 18 | 21.2 | 80 | 363 | 34 | 110 | 75 | 110 |
| 80FMES032 | 32-8 | 44.5 | 31.5 | 105 | 472 | 45 | 166 | 97 | 168 |
