The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

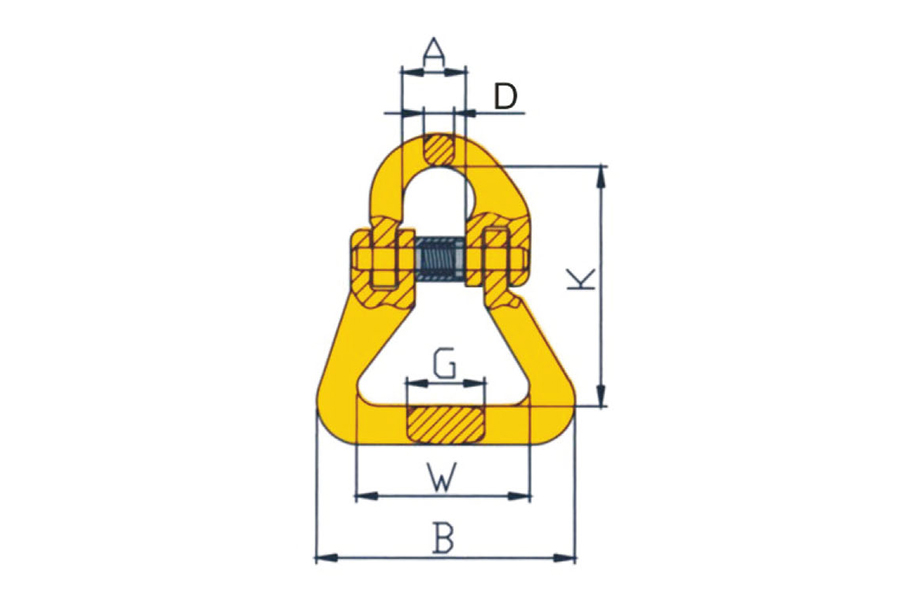

| Item NO. | Size(mm) | Weight(kg) | Wll(T) | Dimension | |||||
| A | B | K | W | G | D | ||||
| 80FMSR006 | 6-8 | 0.2 | 1.2 | 15 | 60 | 56 | 40 | 18 | 7 |
| 80FMSR087 | 7/8-8 | 0.3 | 2 | 20 | 61.5 | 63.7 | 40 | 24 | 9.5 |
| 80FMSR010 | 10-8 | 0.68 | 3.2 | 24 | 66 | 83 | 39 | 30.5 | 11 |
| 80FMSR013 | 13-8 | 1.47 | 5.3 | 28 | 88 | 93.7 | 55 | 36.8 | 16.5 |
| 80FMSR016 | 16-8 | 2.3 | 8 | 34.5 | 108 | 120 | 65.5 | 45.2 | 19.8 |
| 80FMSR020 | 20-8 | 3.3 | 12.5 | 41 | 129 | 138 | 80 | 51.8 | 23 |
| 80FMSR022 | 22-8 | 6.89 | 15 | 50 | 191 | 180 | 126 | 70 | 26 |
| 80FMSR026 | 26-8 | 10.62 | 21.2 | 58 | 228.4 | 209.5 | 152 | 32 | 30 |
| 80FMSR032 | 32-8 | 18.92 | 31.5 | 72.5 | 252 | 279 | 160 | 91 | 55 |
