The wrought alloy steel is quenched and Tem treated
Individual proof test at 2.5 times workload limit with certification.
The ultimate load is 4 times the working load limit
100% magnetic flaw detection
Suitable for EN818-2 G80 chain
Surface treatment: powder plasticization
Color code: Red (RAL3020)/ Yellow (RAL1003). Other colors are available.

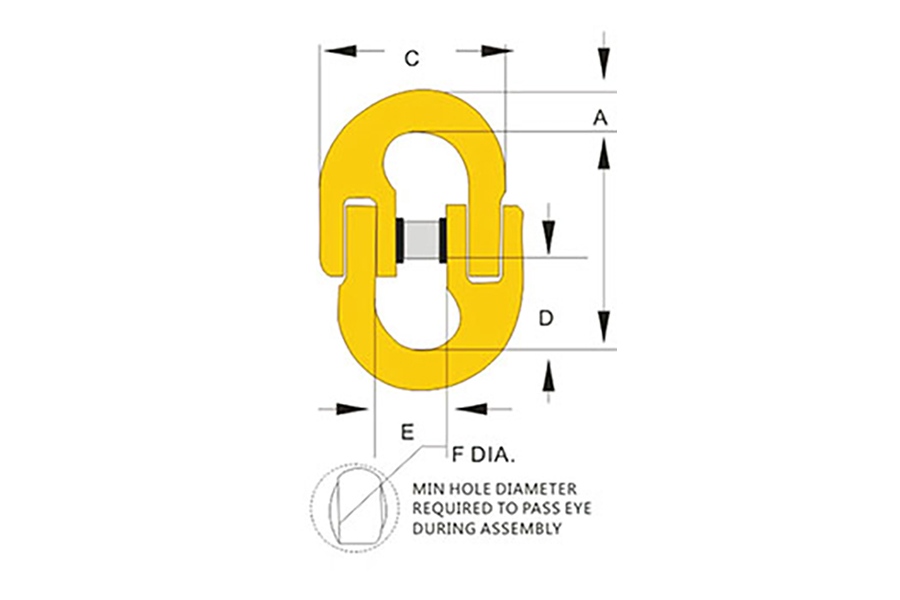

| Item NO. | Size(in) | Weight(lbs) | Wll(lbs) | Dimension(mm) | |||||
| A | B | C | D | E | F | ||||
| 80FMRB041 | 9/32(1/4) | 0.28 | 3500 | 0.36 | 1.88 | 1.75 | 0.78 | 0.66 | 0.56 |
| 80FMRB0165 | 5/16 | 0.33 | 4500 | 0.39 | 2.13 | 1.97 | 0.88 | 0.69 | 0.63 |
| 80FMRB083 | 3/8 | 0.73 | 7100 | 0.52 | 2.50 | 2.50 | 1.03 | 0.88 | 0.75 |
| 80FMRB021 | 1/2 | 1.67 | 12000 | 0.64 | 3.44 | 3.44 | 1.44 | 1.13 | 0.94 |
| 80FMRB085 | 5/8 | 2.86 | 18100 | 0.75 | 4.13 | 4.13 | 1.73 | 1.41 | 1.13 |
| 80FMRB043 | 3/4 | 5 | 28300 | 0.97 | 4.94 | 4.94 | 2.08 | 1.63 | 1.28 |
| 80FMRB087 | 7/8 | 7.5 | 34200 | 1.08 | 6.50 | 6.50 | 2.31 | 2.00 | 1.44 |
| 80FMRB01 | 1 | 11.03 | 47700 | 1.22 | 6.00 | 6.00 | 2.50 | 2.25 | 1.88 |
| 80FMRB0141 | 1-1/4 | 20.38 | 72300 | 1.50 | 7.43 | 7.43 | 3.06 | 2.56 | 2.19 |
